High Efficiency PV Module Half Cell 410W Mono Solar Panel

High Efficiency PV Module Half Cell 410W Mono Solar Panel

Product model:

Product classification:

Solar Panel

E-mail:

leo_zecrowntech@163.com

Hotline:

+86-13599218143

High Efficiency PV Module Half Cell 410 Watt Mono Solar Panel Solar System

Solar Mono 410W adopts the PERC process, offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

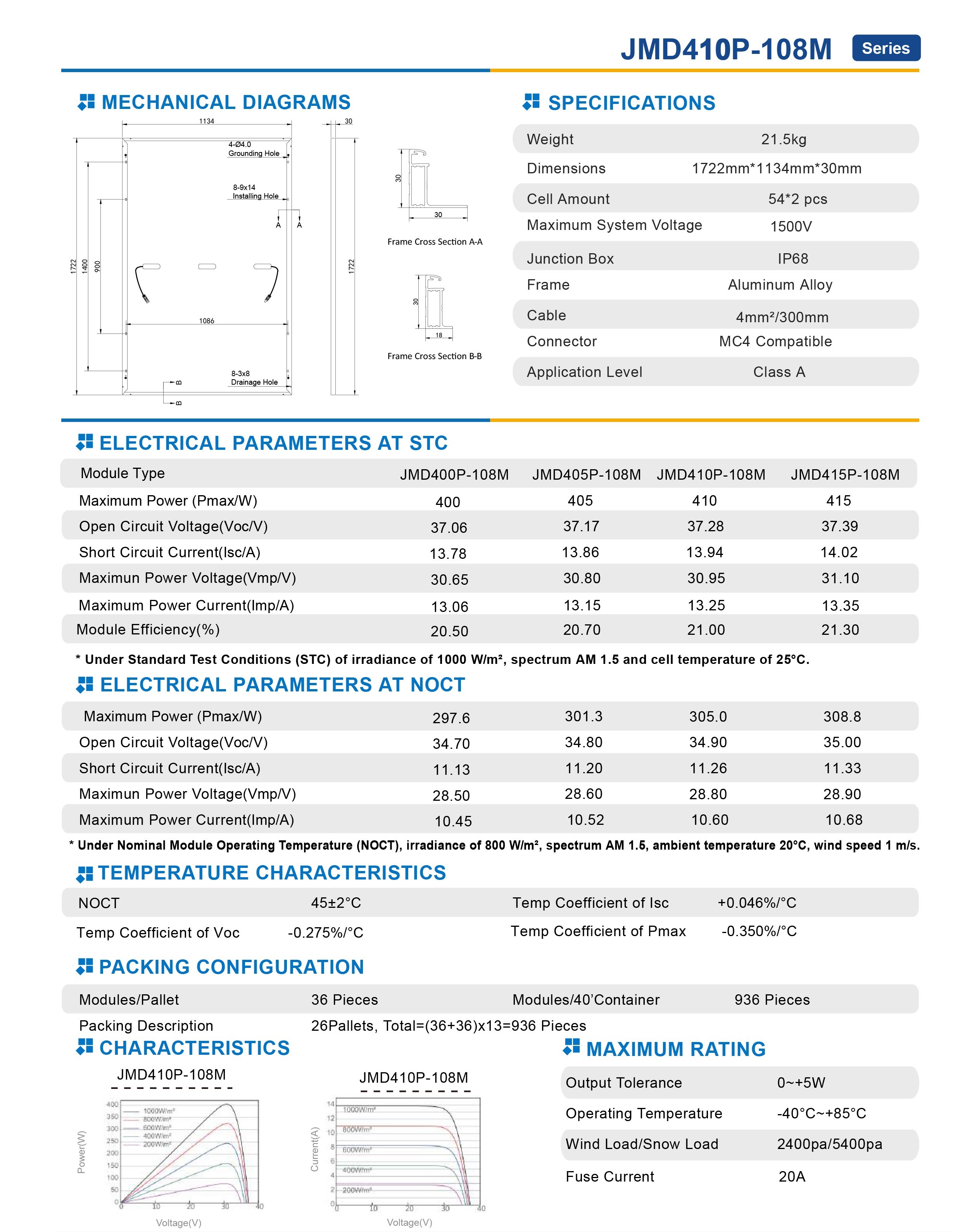

Model:

JMD410P-108M

Size:

1722*1134*30mm

Cell range:

6*18 (182*91mm)

Weight:

21.5 kg/pc

Packing:

36 pcs/pallet. 40HQ loading 936 pcs, 26 pallets

Our solar panels have the following characteristics

● Efficient 182 cells: Better current collection capacity, larger power generation area, beautiful appearance, more suitable for roof installation.

● High output power: Adopting PERC cell structure technology (low resistance characteristic), mono module has a maximum output power of 600W (module conversion efficiency up to 22%).

● Low light performance: By using excellent surface velvet technology for glass and battery cells, excellent performance can be achieved in low light environments.

● Adaptability to harsh environments: Certified for high salt spray and high ammonia corrosion testing, capable of adapting to harsh and complex environments.

● Solar cell: We use well-known brand and high efficieny A grade PV cells, with consistent appearance on each module, Anti-PID.

● Glass: With tempered and anti-reflective glass, module efficiency is increased by 2%, easy cleaning function, and service life as long as 25 years.

● Aluminium frame: Silver or black frame are optional, boost bearing capability and prolong service life.

● Junction box: IP67 protectional level, quality diode ensures module running safety, and excellent heat dissipation.
