Solar inverter is a crucial component of a solar energy system. It is responsible for converting the Direct Current (DC) electricity generated by the solar panels into Alternating Current (AC) electricity, which can be used to power household appliances and other electrical devices.

Solar inverters are designed to work with solar panels, batteries, and the electrical grid. They are an essential part of any solar energy system because they ensure that the electricity generated by the solar panels can be used to power homes and businesses.

Solar inverters come in different sizes and capacities, depending on the size of the solar energy system. They are available in single-phase and three-phase models, and their output power ranges from a few hundred watts to several kilowatts.

In conclusion, solar inverters are an essential component of any solar energy system. They ensure that the electricity generated by the solar panels can be used to power homes and businesses. There are different types of solar inverters available, and their efficiency is an essential factor to consider when choosing an inverter for a solar energy system

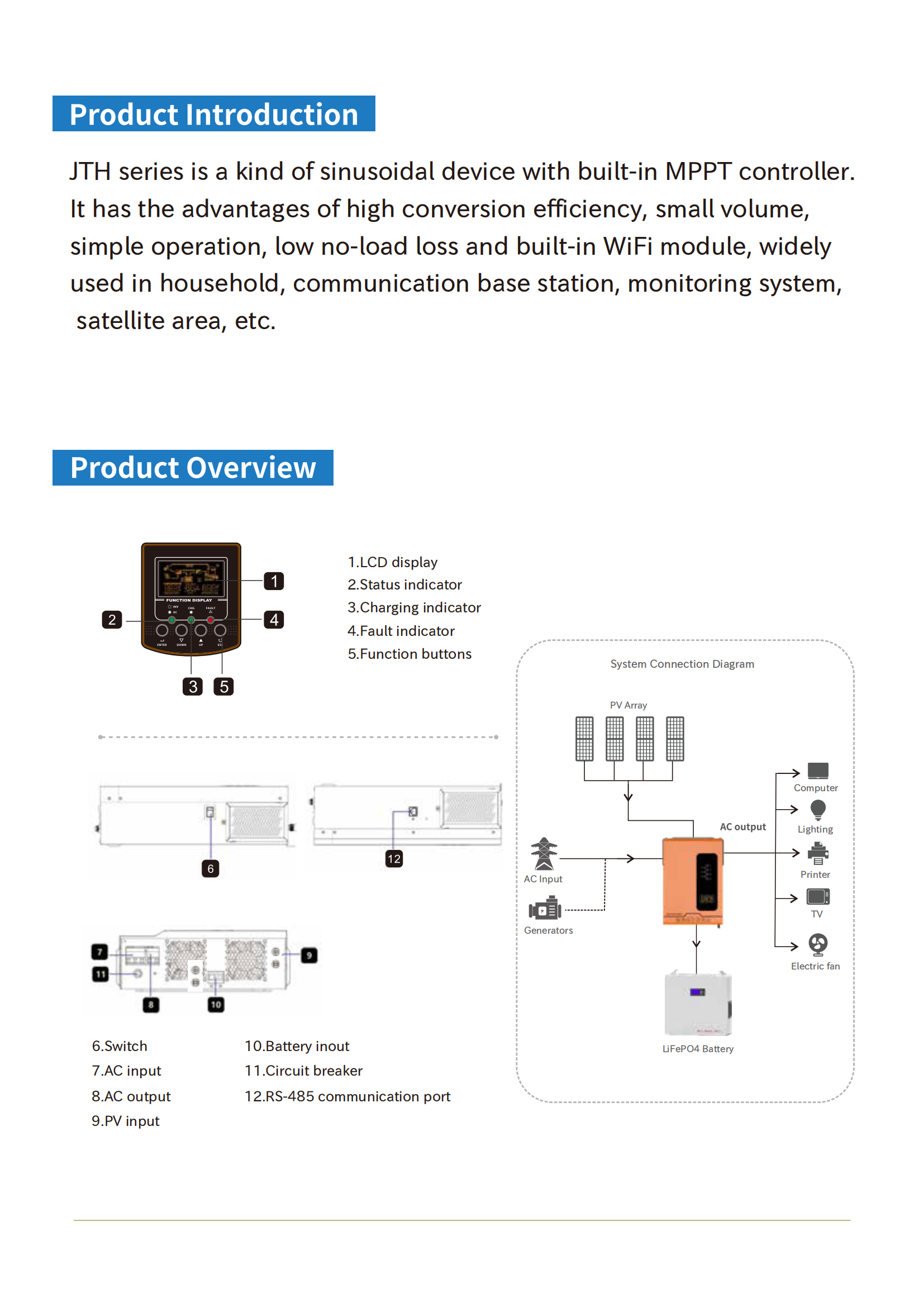

OEM Hybrid 3.6kw Inverter 24v Solar Hybrid Inverter With Mppt Solar Charger Pure Sine Wave compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., JTH series is a kind of sinusoidal device with built-in MPPT controller. It has the advantages of high conversion efficiency, small volume, simple operation, low no-load loss and built-in WiFi module, widely used in household, communication base station, monitoring system, satellite area, etc.

Pure sine wave output

Ultra large photovoltaic output voltage range

Built in MPPT solar charging controller

Adjustable charging current and voltage

Multi mode setting function, prioritizing photovoltaic, mains, and battery settings

Equipped with battery protection functions such as over discharge, overload, over temperature, short circuit, etc Cold start function.

Support APP control and WIFI intelligent monitoring

Supports BMS communication port (RS485)

Inverter running without battery

● Pure sine wave output

● Ultra large photovoltaic output voltage range

● Built in MPPT solar charging controller

● Adjustable charging current and voltage

● Multi mode setting function, prioritizing photovoltaic, mains, and battery settings

● Equipped with battery protection functions such as over discharge, overload, over temperature, short circuit, etc

● Cold start function.

● Support APP control and WIFI intelligent monitoring

● Supports BMS communication port (RS485)

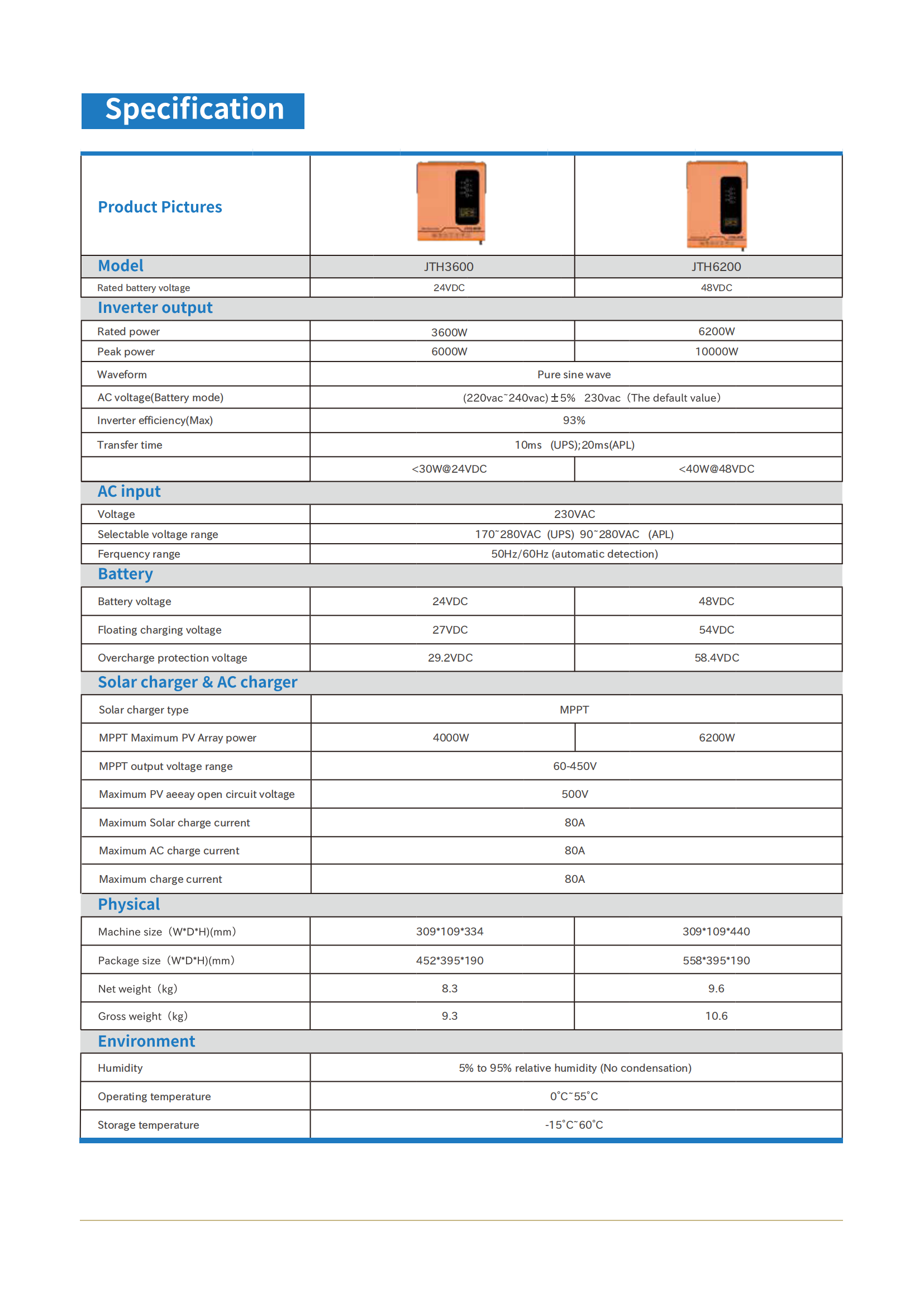

Hybrid inverter

Maximum PV Input Power: 4000W

Rated Output Power: 3600W

Maximum Solar Charging Current: 80A

PV Input (DC):

Nominal DC Voltage/ Maximum DC Voltage: 360VDC/500VDC

Start-up Voltage / Initial Feeding Voltage: 90VDC/120VDC

Maximum DC Voltage: 60-450VDC

Number of MPPT trackers / Maximum Input Current: 1/80A
