Smart Hybrid 6.2kw Inverter 48v Solar Hybrid Inverter With Mppt Solar Charger Pure Sine Wave
Product model:
Product classification:
Detailed information

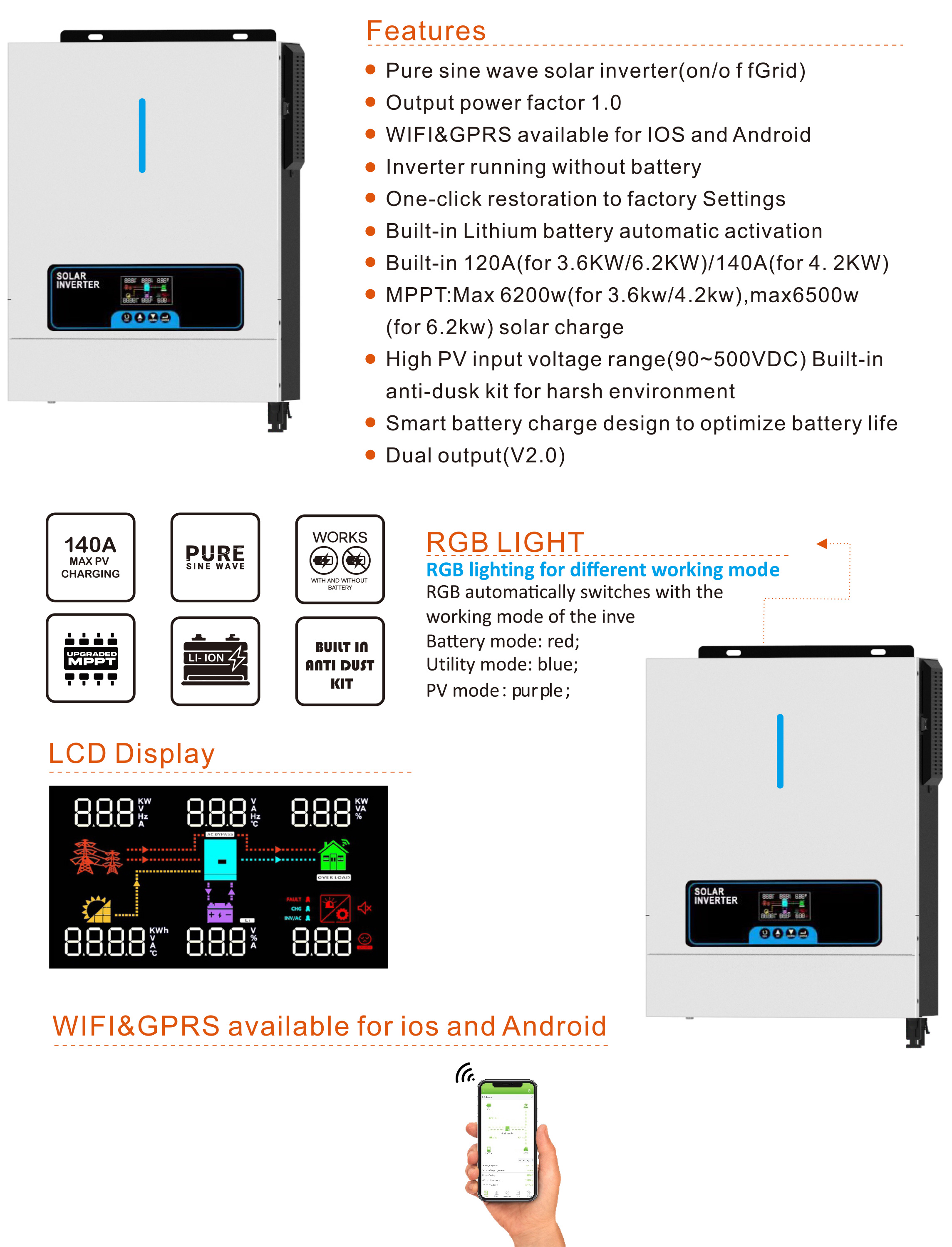

Pure sine wave solar inverter (On/Off grid)
Output power factor 1.0
Wifi & GPRS available for ISO and Android
Inverter running without battery
Built-in Lithium battery automatic activation
Built-in 120A MPPT charge controller
Maximum PV Input Power 6500W
High PV input voltage range(60-450VDC)
Built-in Anti dusk kit
Configurable grid or solar input priority
RGB lighting for different working mode
Inverter running without battery
● One-click restoration to factory settings
● Built-in lithium battery automatic activation
● Built-in 120A MPPT solar charger
● High PV input voltage range (90-500VDC)
● Built-in anti-dusk kit for harsh environment
● Smart battery charge design o potimize battery life
● Built-in remote LCD display
● Dual output (V2.0)

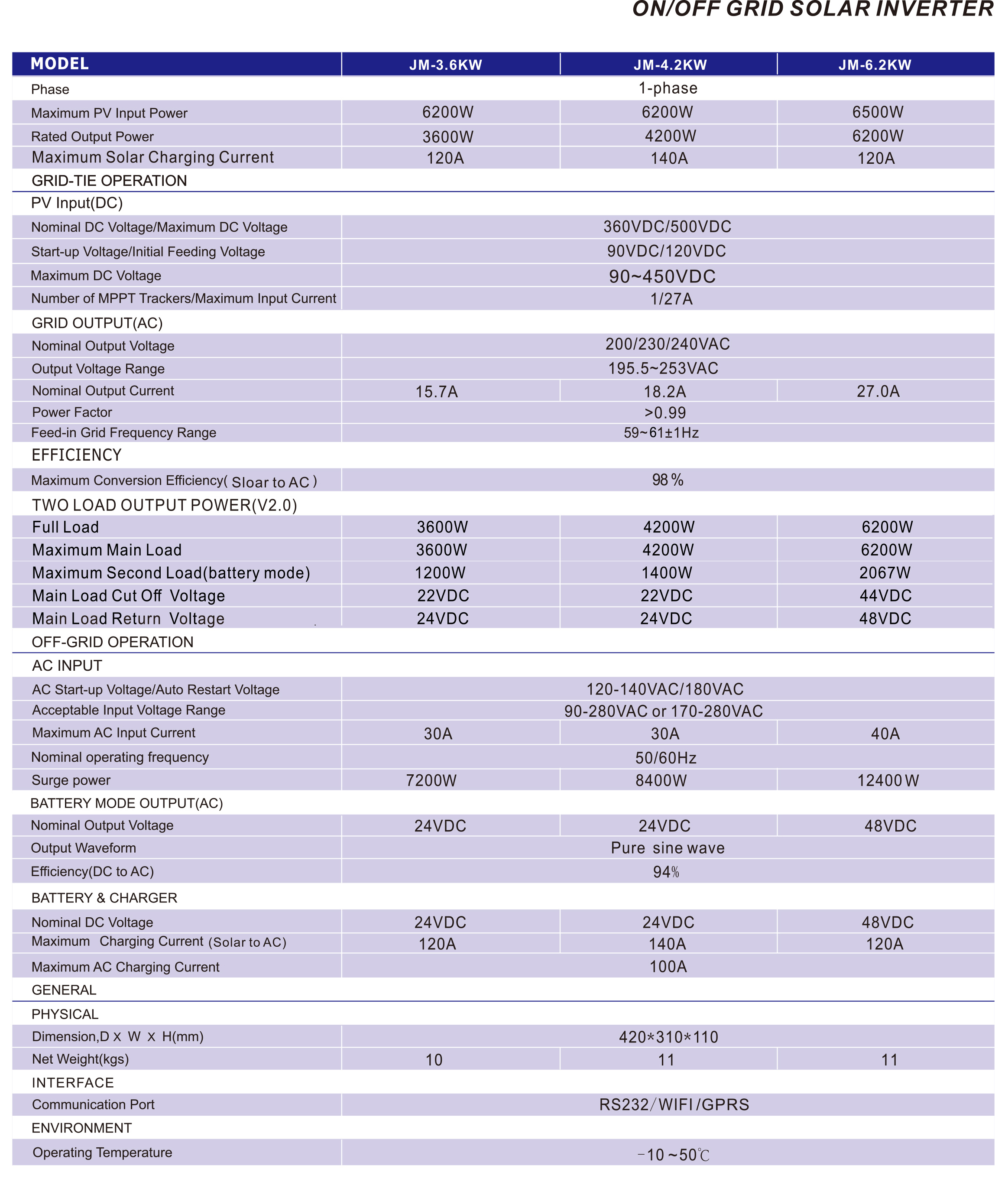

Single phase
Maximum PV Input Power: 6500W
Rated Output Power: 6200W
Maximum Solar Charging Current: 120A
PV Input (DC):
Nominal DC Voltage/ Maximum DC Voltage: 360VDC/500VDC
Start-up Voltage / Initial Feeding Voltage: 90VDC/120VDC
Maximum DC Voltage: 90-450VDC
Number of MPPT trackers / Maximum Input Current: 1/27A
Grid Output (AC):
Nominal Output Voltage: 220/230/240VAC
Output Voltage Range: 195.5-253VAC
Nominal Output Current: 27.0A
Power Factor: >0.99
Feed-in Grid Frequency Range: 59-61±1Hz
